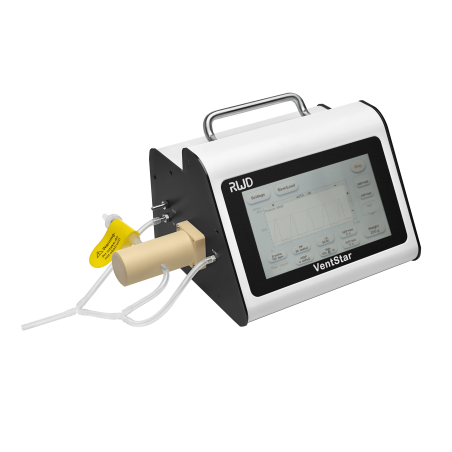

R415 VentStar Small Animal Ventilator

$3,500.00

Sku: R415

In stock: 30 Items

R415 is a mechanical ventilator used to assist animal respiration, suitable for mice, rats, and guinea pigs, and other animals weighing 10g-1kg.

It is widely used in basic medical research, clinical medicine,
animal medicine and other scientific research experiments (such as myocardial ischemia model making, lung function evaluation).

1. Suitable for mice to guinea pigs range from 10g to 1kg.

2. Convenient for the setting of animal ventilator data by inputting animal weight.

3. Built-in VCV and PIPCV working mode.

4. Real-time graphical display of tracheal pressure.

5. Touch Screen with a 75-degree visual surface design for easy operation.

6. Provide safe and effective intermittent positive pressure ventilation (IPPV), volume and pressure modes are available.

7. Sound, intelligent text, error code and other fault alarm alerts

Suggested Weight Range	10g～1kg
Species	Mouse/Rat～Guinea Pig
Tidal Volume Range (TV)	0.05ml～5ml Resolution: 0.001ml
Peak Inspiratory Pressure (PIP)	1～50cmH2O Resolution: 1 cmH2O Accuracy: ±0.7 cmH2O
PEEP	0～10 cmH2O Resolution: 1 cmH2O
Breath Rate (bpm)	10～300 bpm
I:E Ratio	20～80%
Sigh Breath	Frequency: Every 10～999 or Manual Volume: 0～20% of tidal volume (in volume mode) or PIP (in pressure volume)
Display	7’’ LCD touchscreen, resistive
Remote Communication	RS-485
Power Supply	100～240VAC, 50/60Hz
Input Power	24V DC, adaptor: 40W Max
Safety Alarms	Over-/Under-pressure, occlusion, high PEEP
Dimensions	320210180mm
Weight	5.1kg
Operating Temperature	4℃～40℃ (40°F～104°F)
Operating Humidity	20～80%, non-condensing
Storage Temperature & Humidity	-10℃～70℃ (14°F～158°F), 20%～80% RH, non-condensing
