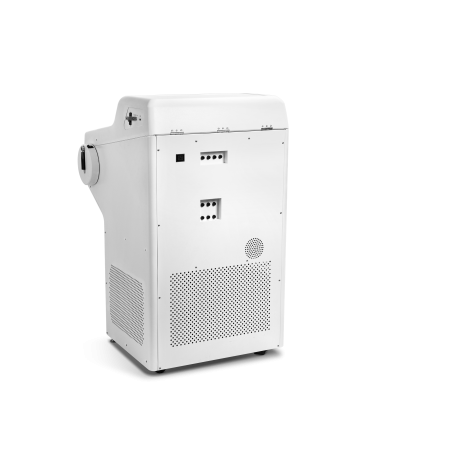

Minux® FS800 Cryostats Semi-Automatic

FS800 Cryostat, also called freeze microtome, is designed to consistently produce high quality frozen sections of maximum quality. Featured superior capability, it is able to cut tissues at low temperatures (as low as -35 °C) quickly. FS800 is your ideal choice for all research applications and even for advanced clinical cryo-sectioning needs.

Available Types:

• UV: for large specimen numbers and varying specimen types with UVC for increased user safety.
• Specimen: Standard type with individually controlled temperature settings on both the cabinet and the object specimen holder.
• Vacuum: Cryostat with vacuum cleaning system for maximizing safety.

• 1. Stable

  1.1 Stable temperature:
  the advanced temperature control system, compressor and cooling system perfectly guarantee temperature stability.
  1.2 Stable slice quality： high-precision cross rail and screw, five-phase high-resolution sampling motor and horizontal sampling slider made of aviation aluminum, form a precise sampling system to ensure stable slice quality.

  2. Safe

  2.1 UVC disinfection: adopting advanced low-temperature UVC disinfection technology to effectively kill bacteria and viruses, disinfecting the inner surface and the air of the cabinet to reduce the risk of contamination by infectious materials.
  2.2 Waste liquid management system: waste liquid volume will be displayed on the touch screen. Full bottle alarm to prevent waste liquid from flowing out and contaminating the ground

  3. Efficient

  3.1 Efficient operation: boasting a colorful touch-sensitive screen. Integrating coarse sample feeding, trimming and section switching, and slice parameter adjustment with a joystick to constitute an efficient operating system.
  3.2 Quick positioning: precise positioning system with ±8°visual pointer make it easy to adjust the specimen clamp to the target angle, reducing trimming and sample waste.
  3.3 Automatic sleep and wake-up: save energy, simplify manual operation and reduce waiting

• Model	FS800 Semi-Automated	FS800A Automated
  Section thickness setting range: 0.50 – 100 µm	√	√
  Trimming section thickness setting range: 1 – 800 µm	√	√
  Electric sectioning speed: 0-1800µm adjustable	√	√
  Specimen retraction: 0-250μm ajustable	√	√
  Specimen feed: 28mm	√	√
  Vertical stroke: 70mm	√	√
  Specimen orientation with zero position horizontal/vertical rotation: X/Y axis 8°	√	√
  Number of refrigerated sites: 15	√	√
  Number of fast cooling sites: 2	√	√
  Freezer refrigeration temperature: 0℃～－35℃	√	√
  Sample head minimum cooling temperature: －50℃	√	√
  Fully automated and semi- automated mode switch		√
  Emergency stop button		√
  Cut window function		√
  Slice speed selection		√
  Multiple slice modes		√
  Pedals(optional)		√

  Model

  Type

  UVC disinfection

  Vacuum

  Specimen cooling system

  Auto section

  Note

  FS800

  UV

  √

  for large specimen numbers and varying specimen types with UVC for increased user safety.

  Specimen

  √

  √

  Standard type with individually controlled temperature settings on both the cabinet and the object specimen holder.

  Vacuum

  √

  √

  √

  Cryostat with vacuum cleaning system for maximizing safety.

• Pathological diagnosis
• Biological research
• Neuroanatomical research
• Pharmaceutical research
