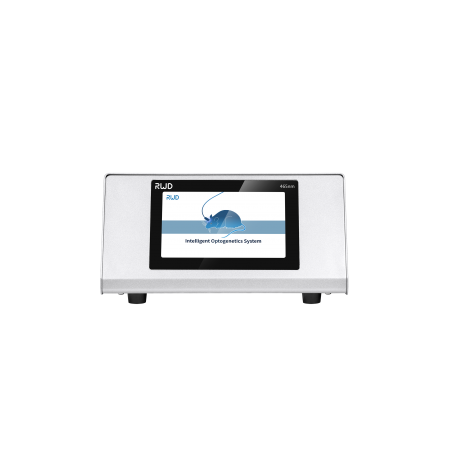

IOS-465 Intelligent Optogenetics System

RWD new intelligent optogenetics system IOS-465, on the basis of the last generation of integrated machines (laser and waveform generator integrated into one), has made another leap in the promotion. The new system is equipped with remote control function, one-click test conversion and three signal triggering modes to meet diversified experimental requirements. Using this instrument, it can reduce the interference of human factors to animal behavior experiment, and the unique test program and experiment record output view function are more conducive to experiment management.

High Stability

——Ensure that the regulation effect is consistent during the experiment

Remote Control

——Avoid more human factors in animal behavioral experiments

Fast Response

——Reduce the time lag between animal behavior and optogenetic regulation

Multiple Trigger Modes

——Meet diversified experimental requirements，such as electrophysiology,, fiber photometry etc.

Power：0-100mW，1mW resolution

Stability：<1%

Remote control：10m

Input：2V-10V

Output：10mV-5V

Trigger mode：Edge/Real-Time/Gate

Edge mode1：If the trigger voltage is higher than or equal to the set value of trigger voltage, the program will run; the trigger is only featured by the “on” function and the program’s duration depends on its set duration.

Real-time mode2：If the trigger voltage is higher than or equal to the set value of trigger voltage, the program will run; if it is lower than that value, the program will stop; the trigger is featured by the “on/off” functions. The program’s duration depends on the trigger’s duration.

Gate mode3：the running power relies on the first subprogram selected and other parameters are defined by the external device, and only square wave at the frequency ≤500Hz are responded to.

Safety：password；high temperature alarm；program run prompt

Storage：internal memory/ USB flash disk

Wavelength：450, 465, 532, 589 and 630 nm (optional)
