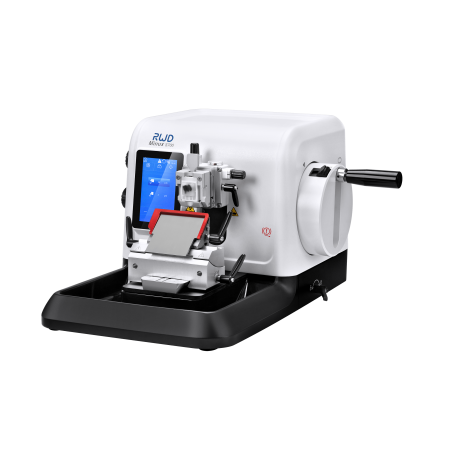

Minux® S700 Semi-Automatic Rotary Microtome

Built upon market-leading microtome machine design, S700 Rotary Microtome enables you to cut sections precisely, safely and super easy to operate. It displays extraordinary ergonomic characteristics for comfortable operation. It is a semi-automatic model, more in line with your slicing habits.

When working with delicate specimens (example being brain samples) the rotary microtome system will provide reproducible, thin, serial sections of maximum quality time and again. Unique side specimen knob and visual pointer design make specimen advance and retraction more precise. Handwheel double lock system, knife ejector, and guard enhance safety.

Application field: Histopathology/Anatomical Pathology

Accurate

• Precise sampling: Our rotary microtome machine is well-equipped with Cross roller bearings and Spindle, combined with a five-phase high-resolution Stepper motor and a Link block made of aviation aluminum, form a high-precision sampling system to ensure slice quality.
• Accurate positioning: With patented pointer identification technology, our rotary microtome machine enables visual adjustment of the sample angle for pinpoint accuracy in positioning; the knife holder has a small lateral displacement which further enhances accuracy. The base has a scale, which is convenient for the knife holder to locate and improve the quality of slices.

Safety

•  Operator safety: The handwheel dual locking system comes with a lock prompt sound, and is equipped with a knife ejector and a knife guard, so that the user can safely replace the sample and blade.

Intelligent

• Information tracking: Our rotary microtome machine is built with a 5-inch touch screen and history recording system that make it easy to trace back the past information and quickly solve the problems.

Convenience

• Convenient operation: German military-grade side injection knob of the rotary microtome machine conforms to ergonomic design, and the operation is more comfortable and coordinated.
• Convenient maintenance: special material waste tank, non-wax, easy to clean

• ※Semi-automatic operation, motorized injection, manual sectioning.

  Section thickness range：0.5 – 100 µm

  • 0.5 – 5.0 µm in 0.5µm increments
  • 5- 20µm in 1µm increments
  • 20 – 30 µm in 2µm increments
  • 30- 60 µm in 5µm increments
  • 60- 100µm in 10µm increments

  Trimming section thickness range：1 – 800 µm

  • 1- 10µm in 1µm increments
  • 10- 20µm in 2µm increments
  • 20- 50µm in 5µm increments
  • 50- 100µm in 10µm increments
  • 100- 800µm in 50µm increments

  Specimen retraction：0-250μm ajustable

  Specimen Feed：28mm

  Vertical Stroke：70mm

   Maximum sample size：standard specimen clamp，55×50×30mm

  Specimen orientation：X axis/Y axis8°，Z axis 360°

  Horizontal feed speed：1800µm/s

  ※Sample positioning function,patented visual pointer identification,keep samples at the same angle and achieve accurate sample positioning.

  ※The 5-inch touch screen is easy to operate. Stylish and simple operation interface,easy to learn and understand.

  ※The side sampling knob is ergonomically designed to make the operation more comfortable. The half-knife repair function simplifies the operation process, saving time and effort.

  Handwheel dual lock system can lock the handwheel at any position. The knife guarding and retracting device, together with the emergency stop button strengthen the protection of the rotary microtome machine operator.

  The sample position memory function and the one-click reset button improve the sectioning efficiency.

  Audible and visual alarm when the remaining section of the horizontal sampling stroke reaches 1mm.

  The historical record system can query the equipment usage and facilitate information tracking.

• Model	S700 Semi-Auto	S700A Fully-Auto
  Section thickness setting range: 0.50 – 100 µm	√	√
  Trimming section thickness setting range: 1 – 800 µm	√	√
  Electric sectioning speed: 0-1800µm	√	√
  Specimen retraction: 0-250µm	√	√
  Specimen feed: 28mm	√	√
  Vertical stroke: 70mm	√	√
  Specimen orientation with zero position horizontal/vertical rotation: X/Y axis 8°	√	√
  Maximum specimen size：55*50*30mm	√	√
  W x D x H: 470mm×553mm×305mm	√	√
  Machine weight	28kg	36.4kg
  Fully motorized and semi- motorized mode switch		√
  Emergency stop button		√
  Cut window function		√
  Slice speed selection		√
  Multiple slice modes		√
  Pedals		√

  S700 Rotary Microtome Configuration

  NO.	Configuration	Model	Number	Note
  1	Host of S700	S700	1
  2	Blade holder assembly	S700-F7	1	Compatible with low and high profile blades
  3	Universal clamp	S700-F3	1
  4	Tool set	S700-F1	1	Screw tools, brush, etc
  5	Easy of cleaning section waste tray (Large)	S700-F10	1	Easy of cleaning section waste tray (Large)
  6	User manual		1
  7	Power cable		1
  8	Dust cover		1
  Optional：
  1	Standard  clamp	S700-F4	1	Standard  clamp
