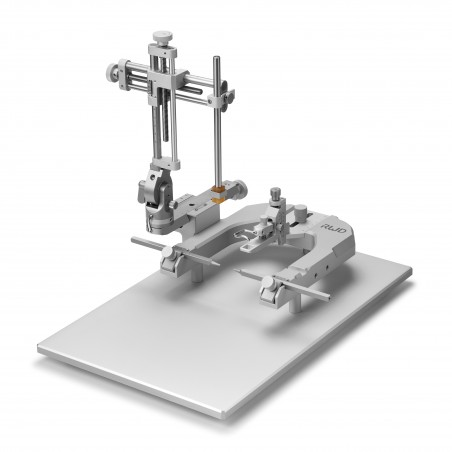

68027，Standard Stereotaxic for Rat

Standard Stereotaxic Instruments is the basic equipment of neuroscience research(100 micron resolution) . The “U”-shaped frame design ensures stability. Replace the rat and mouse adapter to realize the positioning of the brain area of the rat and the mouse.

• Unique UP indicator to prevent incorrect operation
• Double-lead screw design, more stable and accurate operation
• Relieve eyestrain by light interrupted
• Curved nose clamp secure the animal firmly
• Adaptors of rats, mice, birds, cats and other different animal are optional

• 1. Adaptors available for rat, mouse, rabbit, guinea pig, etc.

  2. Working distance in each dimension is 80 mm with precise alignment to 0.1mm resolution.

  3. Vertical direction: 180° rotation and lock at any angles.

  4. Horizontal direction: 360° rotation and lock at any angles.

  5. Dual-lead screws ensure stable, accurate and smooth manipulation.

  6. Accuracy and flexibility can be maintained at variable temperatures.

  7. Extended base plate (400mm x 255mm) is applicable for a variety of animal sizes.

  8. Unique anti-clockwise UP mark engraved in the knob prevents incorrect operation.

  9. Vertical lock and fixing knob are separated to ensure accurate function at any angle.

  10. To ensure a precise designed lateral rotation operating space, the distance between knob and the U-shaped frame is 28mm.

  11. Laser engraved scales enable comfortable reading.

  12. Curved nose clamp design secures the head of animals.

  13. Ear bar locked plate pressing instead of clamping ensures more stability.

  14. Syringe pump, micro camera and drill can be attached to instruments.

• Model	Product Description	Adaptor	Ear bar	Three-dimensional manipulator	Holder	Base plate
  68001	Stereotaxic for Rat	68021 Rat	18°	SGL-Left	68201	68861N
  68002	Stereotaxic for Rat	68021 Rat	18°	Dual	68201	68861N
  68005	Stereotaxic for Rat	68021 Rat	45°	SGL-Left	68201	68861N
  68006	Stereotaxic for Rat	68021 Rat	45°	Dual	68201	68861N
  68037	Stereotaxic for Mouse	68030 Mouse	Included in 68030	SGL-Left	68201	68861N
  68038	Stereotaxic for Mouse	68030   Mouse	Included in 68030	Dual	68201	68861N
  68043	Stereotaxic for Mouse	68055	60°	SGL-Left	68201	68861N
  68044	Stereotaxic for Rat	68055	60°	Dual	68201	68861N
  68535	Stereotaxic for Mouse	68077	60°	SGL-Left	68201	68861N
  68536	Stereotaxic for Rat	68078	18°	Dual	68201	68861N

• Ding X B, Wang X X, Xia D H, et al. Impaired meningeal lymphatic drainage in patients with idiopathic Parkinson’s disease[J]. Nature Medicine, 2021, 27(3): 411-418.
• Zhou W, Ye C, Wang H, et al. Sound induces analgesia through corticothalamic circuits[J]. Science, 2022, 377(6602): 198-204.
• Liu X X, Chen X H, Zheng Z W, et al. BOD1 regulates the cerebellar IV/V lobe-fastigial nucleus circuit associated with motor coordination[J]. Signal Transduction and Targeted Therapy, 2022, 7(1): 1-14.
• Gao L, Wang J, Zhao Y, et al. Free‐Standing Nanofilm Electrode Arrays for Long‐Term Stable Neural Interfacings[J]. Advanced Materials, 2022, 34(5): 2107343.
• Feng Z, Bai S, Qi J, et al. Biologically Excretable Aggregation‐Induced Emission Dots for Visualizing through the Marmosets Intravitally: Horizons in Future Clinical Nanomedicine[J]. Advanced Materials, 2021, 33(17): 2008123.
• Zong W, Wu R, Chen S, et al. Miniature two-photon microscopy for enlarged field-of-view, multi-plane and long-term brain imaging[J]. Nature methods, 2021, 18(1): 46-49.
• Li X, Zhang G, Wu J, et al. Reinforcing neuron extraction and spike inference in calcium imaging using deep self-supervised denoising[J]. Nature Methods, 2021, 18(11): 1395-1400.
• Demas J, Manley J, Tejera F, et al. High-speed, cortex-wide volumetric recording of neuroactivity at cellular resolution using light beads microscopy[J]. Nature methods, 2021, 18(9): 1103-1111.
• Zhang G W, Shen L, Tao C, et al. Medial preoptic area antagonistically mediates stress-induced anxiety and parental behavior[J]. Nature neuroscience, 2021, 24(4): 516-528.
• Zhu X, Tang H D, Dong W Y, et al. Distinct thalamocortical circuits underlie allodynia induced by tissue injury and by depression-like states[J]. Nature Neuroscience, 2021, 24(4): 542-553.
• Chen B, Tong X, Zhang X, et al. Sulfation modification of dopamine in brain regulates aggregative behavior of animals[J]. National science review, 2022, 9(4): nwab163.
